How to Connect Your Alesis Nitro to a DAW for Electronic Music Production

Connecting your Alesis Nitro electronic drum kit to a Digital Audio Workstation (DAW) is the most effective way to unlock professional electronic music production. By routing the kit to a computer, you can bypass the module’s built-in sounds and trigger high-fidelity virtual instruments, synthesizers, and custom sample libraries. This integration is typically achieved using a standard USB MIDI connection, which transmits your performance data in real time to trigger drum software within your DAW. Alternatively, you can record the module’s internal sounds by routing its audio outputs to an external audio interface.

Setting up this connection transforms your physical drum kit into a highly responsive MIDI controller. Whether you are producing techno, house, drum and bass, or hip-hop, triggering custom samples directly from your drum pads provides a level of human feel and dynamic expression that drawing MIDI notes with a mouse simply cannot replicate. Achieving a seamless connection requires a clear understanding of your hardware ports, software routing settings, and performance optimization techniques.

Essential Gear and Preparation for Your Setup

Before making physical connections, gather the necessary hardware and software components to ensure a stable link between your electronic drum kit and your computer. Preparing your workspace beforehand minimizes troubleshooting during the configuration phase.

Products mentioned in this guide

Alesis Alesis Nitro Pro 8-Piece Electronic Drums Kit for Beginners to Advanced Players with Bluetooth [LIMITED STOCK] S$1,310.00 View product →

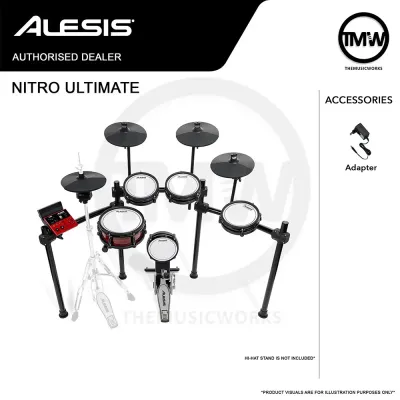

Alesis Alesis Nitro Ultimate 9-piece Electronic Drums Nitro Series Dual Zone Pads and Cymbals [LIMITED STOCK] S$1,640.00 View product →

Alesis Alesis Nitro Max Kit Foldable Electronic Drum Set With Dual Zone Mesh Head Snare Toms Cymbals Kick Pedal Module Drumsticks [LIMITED STOCK] S$1,010.00 View product →

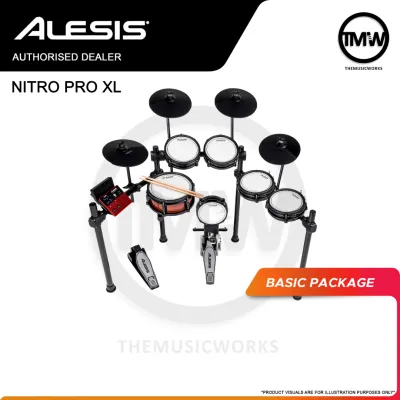

Alesis Alesis Nitro Pro XL 10 Pieces for Beginner to Advanced Players with Bluetooth & Mesh Heads [PREORDER] S$1,530.00 View product →

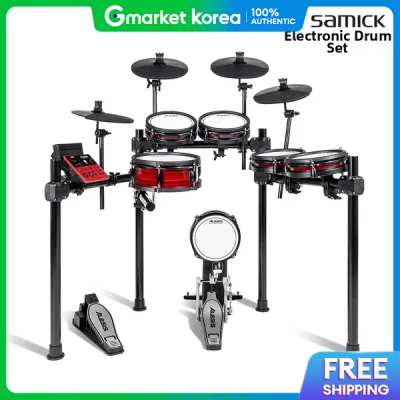

No Brand Alesis Electronic Drum Nitro Pro XL S$1,456.39S$2,281.09 View product →

Prices are valid at publication and may change. Please refer to the product page for the latest price.

The primary hardware components required for a modern electronic music production setup include:

• The Alesis Nitro Drum Module: This serves as the brain of your electronic drum kit, translating physical pad strikes into digital signals.
• A Standard USB Cable: You will need a USB Type-A to Type-B cable (commonly referred to as a USB printer cable). If your computer only features USB-C ports, a high-quality adapter or a dedicated USB-C to USB-B cable is necessary.
• A Computer: A desktop or laptop computer capable of running modern audio software.
• A Digital Audio Workstation (DAW): Software such as Ableton Live, FL Studio, Logic Pro, Reaper, or Studio One will host your virtual instruments and record your MIDI performances.

The Alesis Nitro drum module is class-compliant. This means it uses standard system drivers provided by your computer’s operating system (such as macOS or Windows) to transmit MIDI data over USB. You do not need to download or install proprietary drivers from the manufacturer’s website for your computer to recognize the device. Simply plugging the module into your computer allows it to function as a plug-and-play MIDI controller.

To ensure low-latency performance and prevent audio dropouts during recording, prepare your computer’s operating system before launching your DAW. Close any resource-heavy background applications, such as web browsers, video editing software, or file-syncing services. Freeing up CPU resources is critical for real-time MIDI processing, as it allows your computer to dedicate its processing power to handling incoming MIDI messages and rendering virtual instruments instantly.

Step-by-Step USB MIDI Connection Guide

Establishing the physical and digital connection between your drum kit and your DAW is a straightforward process when completed in the correct order. Follow these steps to route your MIDI signals accurately.

Physical Connection First, locate the square USB MIDI port on the back of the Alesis Nitro drum module. Insert the square Type-B end of your USB cable firmly into this port. Next, connect the flat Type-A end (or USB-C end, if using an adapter) into an available port on your computer. Whenever possible, connect the cable directly to the computer rather than using unpowered USB hubs, as hubs can introduce latency or power fluctuations. Once the cable is securely connected at both ends, press the power button on the Alesis Nitro module to turn it on.

DAW Configuration Launch your chosen DAW on your computer. Navigate to the preferences or settings menu, which is typically found under the “File,” “Edit,” or “Options” menu depending on your software. Inside the settings window, locate the tab labeled “MIDI,” “Sync,” or “Link.” In this menu, you should see a list of available MIDI input and output devices. Look for “Alesis Nitro” or “USB MIDI Device” in the input list. Click the checkbox or toggle switch to enable the device as an active MIDI input. Ensure that both the “Track” and “Remote” options (or their equivalents in your specific DAW) are enabled for this input.

Track Setup Create a new track within your DAW. Because you are sending performance data rather than audio signals, you must create a MIDI track or an Instrument track, not an audio track. Once the track is created, locate its input routing section. Set the input source to receive MIDI signals from the Alesis Nitro, or select “All Ins” to capture data from all connected controllers. Next, load a drum virtual instrument or sampler plugin onto the track. Finally, click the “Arm for Recording” button (often represented by a small red circle or a record icon) on the track header. Arming the track instructs the DAW to listen to incoming MIDI data from the kit.

Expected Result To verify that the digital link is active, strike one of the drum pads, such as the snare or hi-hat. Look at the armed track in your DAW. You should see a visual MIDI activity indicator—typically a small flashing light or a moving level meter—reacting in real time to each hit. If this indicator flashes, your DAW is successfully receiving the MIDI data from your Alesis Nitro module, confirming that the physical and digital connections are functioning correctly.

MIDI vs. Audio: Choosing the Right Signal Path

When connecting your electronic drum kit to a computer, you must choose between routing MIDI data or audio signals. Understanding the differences between these two paths is essential for structuring your electronic music production workflow.

MIDI over USB The USB connection on the back of the Alesis Nitro module transmits MIDI (Musical Instrument Digital Interface) data, not actual sound. MIDI data consists of digital messages that describe your performance: which pad was hit (note number), how hard it was hit (velocity), and precisely when it was struck (timing). Because MIDI files are incredibly lightweight, they do not strain your computer’s storage or processor.

For electronic music production, MIDI over USB is the preferred signal path. It allows you to trigger modern software synthesizers, drum samplers, and virtual instruments inside your DAW. This means you can play a physical snare pad on your Alesis Nitro but hear a classic analog drum machine sample, a synthetic sub-bass, or a custom vocal chop. Furthermore, because MIDI records performance data rather than printed audio, you can easily edit individual notes, correct timing mistakes (quantization), or change the entire drum kit sound long after the performance has been recorded.

Audio Connection If you want to record the actual, built-in sounds generated by the Alesis Nitro module, you must use an analog audio connection. This requires connecting 1/4-inch mono audio cables from the “Output” jacks (Left and Right) on the back of the drum module to the inputs of an external audio interface connected to your computer. You would then create an audio track in your DAW to record the incoming sound waves.

Decision Guidance For the vast majority of electronic music producers, the USB MIDI connection offers the most creative flexibility and control. It bypasses the hardware limitations of the module’s internal sounds, giving you access to thousands of modern software instruments. You should rely primarily on the USB MIDI connection for your production workflow. Only use the analog audio connection if you specifically want to capture the unique character of the Alesis Nitro’s built-in sound presets, or if you plan to layer the module’s onboard sounds with your virtual instruments for a thicker, hybrid drum texture.

Triggering VSTs and Custom Samples in Your DAW

Once your MIDI connection is active, you can begin triggering virtual studio technology (VST) instruments and custom samples. Optimizing this setup involves matching your physical pads to the correct software sounds and adjusting software settings to ensure a responsive playing experience.

Mapping Pads to Sampler Slots

To play your virtual instruments naturally, the physical pads on your Alesis Nitro must align with the corresponding sounds in your DAW’s drum rack or sampler.

First, load a drum sampler or VST plugin (such as Ableton’s Drum Rack, FL Studio’s FPC, or a dedicated drum instrument) onto your armed MIDI track. Each slot in these samplers is assigned to a specific MIDI note number. For example, a standard kick drum sample might be assigned to MIDI note C1, while the snare is assigned to D1. When you strike a pad on your Alesis Nitro, the module sends a specific MIDI note number to the computer.

If striking your physical snare pad triggers a hi-hat sample or does not produce any sound at all, the MIDI notes are misaligned. You can resolve this mapping issue using one of two methods:

• DAW-Side Mapping: Most modern drum samplers allow you to drag and drop your samples onto the specific MIDI note slots that correspond to your physical pads. Alternatively, some plugins feature a "MIDI Learn" button. Click this button, select the sample slot you wish to map, and then strike the physical pad on your kit to automatically link them.
• Module-Side Mapping: You can change the MIDI note output directly on the Alesis Nitro module. Press the "Voice" button on the module, strike the pad you want to change, and use the page buttons to find the "MIDI Note" setting. Use the up and down arrow buttons to change the assigned MIDI note number until it triggers the desired sample in your DAW.

Managing Latency and Velocity Curves

To make your electronic drum kit feel like an acoustic instrument, you must minimize latency and configure the pads’ sensitivity to match your playing style.

Latency Adjustment Audio latency is the short delay between the physical action of striking a drum pad and the sound outputting from your speakers or headphones. High latency makes real-time playing difficult and disrupts your timing. To minimize this delay, open your DAW’s audio preferences and locate the “Buffer Size” setting. Lowering the buffer size (for example, from 512 samples to 128 or 64 samples) reduces latency, resulting in a more immediate response.

However, a lower buffer size increases the workload on your computer’s CPU. If the buffer size is set too low for your computer’s processing capabilities, you will hear audible clicks, pops, or dropouts in the audio. If you experience these issues, gradually increase the buffer size until the audio is clean while maintaining an acceptable level of latency. For professional setups in Singapore, using a dedicated ASIO audio driver on Windows or Core Audio on macOS is highly recommended to achieve the lowest possible latency.

Velocity Curves Velocity refers to how hard you strike a drum pad, which translates to a MIDI value between 1 (extremely soft) and 127 (extremely loud). Electronic music instruments often require precise control over these dynamics. If you find that gentle taps on your pads trigger full-volume samples, or if you have to strike the pads excessively hard to get a loud sound, you need to adjust the velocity curves.

You can adjust these curves inside your DAW using MIDI velocity effects plugins, which allow you to compress, expand, or limit the incoming velocity values. Alternatively, you can modify the sensitivity directly on the Alesis Nitro module. Press the “Utility” button, select the pad you wish to adjust, and navigate to the sensitivity (SENS) and velocity curve (CURV) settings. Adjusting these parameters ensures that your physical playing dynamics translate smoothly to your digital instruments, preserving the expressive nuances of your performance.

Testing Your Setup and Fixing Common Issues

With your physical connections established and your software configured, you should test the system to ensure long-term reliability and troubleshoot any performance issues.

Verification To test your setup, set your DAW’s metronome to a comfortable tempo and press the record button. Play a simple drum pattern for a few measures, ensuring you use all the pads, including the cymbals and pedals. Once finished, stop recording and look at the recorded MIDI clip on your timeline. Double-click the clip to open the MIDI editor. Verify that all notes are aligned correctly on the grid and that the velocity lines vary in height, indicating that your playing dynamics were captured accurately. Play back the recorded track to confirm that the virtual instrument triggers smoothly without any dropped notes.

No Sound Output If you see MIDI activity indicators flashing in your DAW when you hit the pads but cannot hear any sound, check the following routing steps:

• Ensure that the MIDI track is armed for recording and that the monitor setting is set to "In" or "Auto."
• Confirm that a virtual instrument or sampler is actively loaded onto the track and contains actual audio samples.
• Check your DAW's main audio preferences to ensure the audio output is routed to the correct audio interface, headphones, or speakers.
• Verify that your computer's system volume is turned up and that your headphones or monitors are connected securely.

Double Triggering Double triggering occurs when a single physical strike on a pad triggers two rapid MIDI notes in your DAW, creating a distracting “machine-gun” effect. This is usually caused by physical vibrations traveling through the drum rack or pad bounce. To fix this, access the trigger settings on your Alesis Nitro module by pressing the “Utility” button. Navigate to the “Retrigger Cancel” (RETRG) or “Threshold” (THRES) settings for the affected pad. Slightly increasing these values prevents the module from registering secondary vibrations as new hits, ensuring clean, single notes.

Missed Notes If some of your fast drum rolls or subtle ghost notes are not registering in your DAW, the issue may stem from physical threshold settings or digital processing bottlenecks. First, check your USB cable connection and avoid using long, unshielded cables that can degrade the signal. Next, check the “Threshold” setting on your Nitro module and lower it slightly so the pad detects softer hits. Finally, if your computer is under heavy CPU load, it may drop incoming MIDI packets. If this occurs, increase your DAW’s audio buffer size slightly or freeze other instrument tracks in your project to free up system resources.

By systematically setting up, mapping, and optimizing your Alesis Nitro electronic drum kit, you can establish a reliable MIDI connection that serves as the foundation for your electronic music production. This setup bridges physical performance with digital sound design, allowing you to produce high-quality drum tracks with natural human expression.
